ATi's R200 GPU
Als ATi im August 2001 ihren neuen Chip vorstellten, gabes lediglich zwei Tests, bei Anandtechund Tom's Hardware. Diese wurden allerdings mit Vorserienboards durchgeführt,welche zudem kein Smoothvision unterstützten. Diese Tests wurden dannvon NVIDIA mit neuen Treibern beantwortet. Erst vor wenigen Wochen konntenman endlich fertige Treiber von ATi bekommen, welche Smoothvision (ATi's FSAA) nutzbar machen. Mit seinen 60 Mio. Transistoren hat ATi zur Zeit den modernsten GPU. Der Pixel Shader des R200 ist leistungsfähiger als der des NV20. Zudem können mittels HydraVision mehrere Bildschirme (Flat Screen, TV, CRT Monitor) angeschlossen werden, was NVIDIA bisher nur beider GeForce 2 MX anbietet. MPEG2 Decodierung (iDCT) ist beim R200 ebenfalls schon enthalten.
So wird in der Tabelle gerechnet:
Technische Daten im Überblick:
| NVIDIA GeForce2 (GTS / PRO / ULTRA) | NVIDIA GeForce3 | NVIDIA GeForce 3 Ti 200 / 500 | ATi Radeon 8500 | ATi Radeon 7500 | |
| Pixel- Pipelines | 4 | 4 | 4 | 4 | 2 |
| Textureneinheiten (pro Pipeline) | 2 | 2 | 2 | 2 | 3 |
| Busbreite intern (Bit) | 256 | 256 | 256 | 256 | 256 |
| max. Texturen pro Pixel | 2 | 4 | 4 | 6 | 3 |
| Chiptakt (MHz) | 200 / 200 / 250 | 200 | 175 / 240 | 275 | 290 |
| theo. max. Füllrate (GPixel/Sec) | 0,8 / 0,8 / 1 | 0,8 | 0,7 / 0,96 | 1,1 | 0,58 |
| theo. max. Füllrate (GTexel/Sec) | 1,6 / 1,6 / 2 | 1,6 | 1,4 / 1,92 | 2,2 | 1,74 |
| Speicherinterface (Bit) | 128 DDR | 128 DDR | 128 DDR | 128 DDR | (1) 128 DDR (2)64 DDR (3) 128SDR |
| Speichertakt (MHz) | 166/200/230 | 230 | 200 / 250 | 275 | 230 |
| Speicherbandbreite (GB/Sec) | 5,31 / 6,4 / 7,36 | 7,36 | 6,4 / 8 | 8,8 | (1) 7,36 (2) 3,68 (3) 3,68 |
| Texelbandbreite (Bytes / Texel) | 3,32 / 4 / 3,68 | 4,6 | 4,57 / 4,17 | 4,4 | (1) 4,02 (2) 2,11 (3)2,11 |
| Pixelbandbreite (Bytes / Pixel) | 6,64 / 8 / 7,36 | 9,2 | 9,14 / 8,33 | 8,8 | (1) 12,69 (2) 6,34 (3) 6,34 |
| Speichergrößen (MB) | 32 / 64 | 64 | 64 | 64 / 128 | 16 / 32 / 64 |
| DirectX Version (Pixel Shader) | DX 7 | DX 8 (1.1) | DX 8 (1.1) | DX 8.1 (1.4) | DX 7 |
| TnL Einheit | ja | ja | ja | ja | ja |
| 64 Bit Farbtiefe | nein | nein | nein | nein | nein |
| VertexShader Einheiten | nein | 1 | 1 | 1 | nein |
| TruForm Einheit | nein | nein | nein | ja | nein |
| Bandbreiten Features | Texturekompression | Texturekompression, Lightspeed Architektur | Texturekompression, Lightspeed Architektur | Texturekompression, HyperZ II | Texturekompression, HyperZ |
| FSAA Arten | Standard | Standard, Quincunx | Standard, Quincunx | adaptives FSAA | Standard |
| HydraVision/ TwinView/DualHead | nein | nein | nein | ja | ja |
| Produkt Samples | - | - | - | - | - |
| Produktions Beginn | - | - | - | - | - |
So wird in der Tabelle gerechnet:
- GB/s = (275 Mhz 2(DDR) 128 Bit / 8 Bit) / 1000 = 8,8 GB/s -> NVIDIA's Weg der grössten Zahlen
- so nicht: GB/s = (275 Mhz 2(DDR) 128 Bit / 8 Bit) / 1024 = 8,59GB/s
- so auch nicht: GB/s = (275000000 Mhz 2(DDR) 128 Bit /8 Bit)/ (102410241024) = 8,19 GB/s
- Smartshader (DirectX 8 / 8.1 Vertex & Pixel Shader)
- HyperZ II
- Truform ( N-Patches )
- Smoothvision (Anti-Aliasing)
- verbessertes Anisotropisches Filtern
- 3D-Texturen

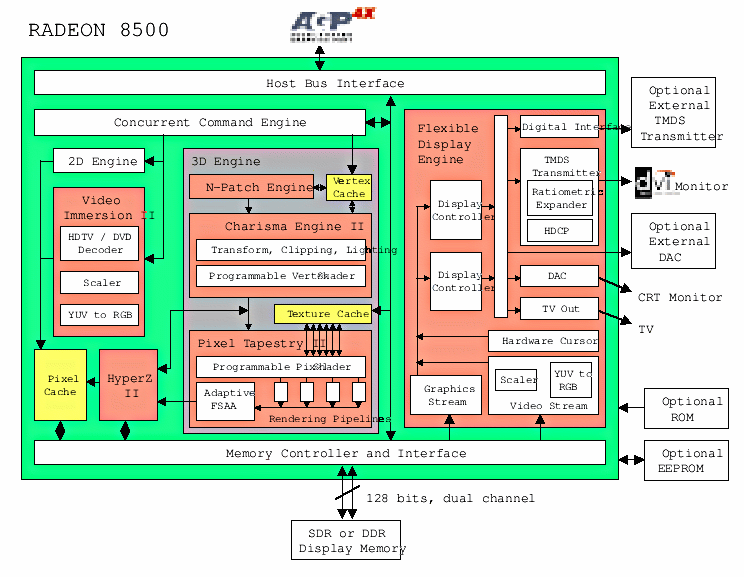

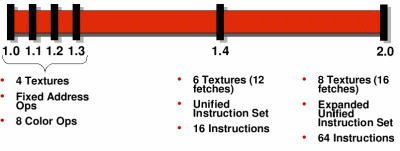

- DirectX 8.1 fähig (Pixel Shader bis Version 1.4)
- TV-Out mit 1024x768
- 6 Texturen pro Durchlauf (GeForce 3 macht nur 4 Texturen pro Durchlauf)
- DVD Wiedergabe mit iDCT & Bewegungskompensation (Entlastungder CPU)
Die auffälligste Neuerung ist der DirectX 8.1 Support. Die Pixel Shader der Version 1.4 sind wesentlich leistungsfähiger als die der Version 1.1, welche vom GeForce 3 unterstützt werden. Mit 275 MhzGPU und Speichertakt laufen GPU & Speicher der Radeon 8500 (Retail- OEM nur 250/250) um 35 Mhz bzw. 25 Mhz schneller als der GPU und derSpeicher der Ti 500.
Smartshader (Vertex & Pixel Shader)

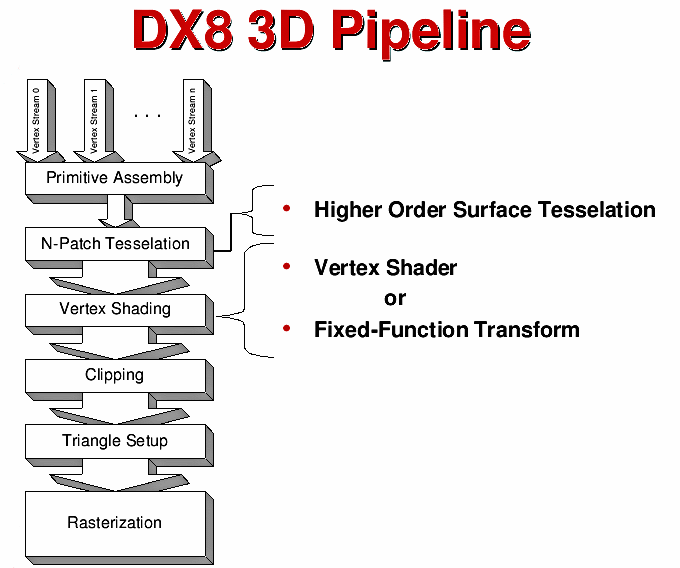

Mit Smartshader bezeichnet ATi seine Vertex & Pixel Shader Einheit. Hinter dem Vertex Shader verbirgt sich eine neue Form der T&L Engine. T&L warbis DirectX 7 immer fest - sprich Vertexdaten gehen durch die T&L Engine, werden dort transformiert und evtl. beleuchtet,jedochhat der Programmiererdanach keine (jedenfalls keine vernünftige) Einflußmöglichkeitmehr auf die Vertexdaten. Mit einerprogrammierbarenT&L Einheit ist dieses Limit beseitigt. Jetzt kannman die Vertexdatenmittels kleiner Vertexprogramme verändern,womit Bewegungsabläufeoder ähnliches vom GPU berechnet werdenkönnen. Zusätzlichkann ATi's R200 mittels Truform Technik neueVertexdaten erzeugen, die nichtextra über den AGP-Bus müssen,sondern GPU intern erzeugt und verarbeitet werden. Die DirectX 8 BezeichnungVertex Shader ist allerdings etwas irreführend, denn bei der programmierbarenT&L Einheit wird nichts schattiert. Vertex Prozessor kommt der Aufgabeschon näher.
Der Pixel Shader kümmert sich hingegen nicht um Vertexdatensondern um die Pixel selbst. Mit ihnen können verschiedene OperationenproPixel ausgeführt werden, wie z.B. Bump-Mapping, Environment-Mapping und viele weitere. Wie unten zu sehen ist, sind die Pixel Shader der Version 1.4 leistungsfähiger, als die, der Version 1.1 (GeForce 3). Mit DirectX 9 werden die Pixel Shader weiter an Leistungsfähigkeit gewinnen. Weitere Details dazu gibts hier.
DirectX 8 Features (der Vollständigkeit wegen alles!)
So, nach dieser ermüdenten Tabelle (die Länge soll keine Aussage sein!) fasse ich die wesentlichen Vor- und Nachteile nochmal kurz zusammen:
Vorteile Radeon 8500
Vorteile GeForce 3
DirectX 8 Features (der Vollständigkeit wegen alles!)
| HAL - GeForce 3 (Det. 23.11) | HAL - Radeon 8500 (6.13.10.6003) |
| Caps | Caps |
| DeviceType 1 | DeviceType 1 |
| AdapterOrdinal 0 | AdapterOrdinal 0 |
| MaxTextureWidth4.096 | MaxTextureWidth2.048 |
| MaxTextureHeight 4.096 | MaxTextureHeight 2.048 |
| MaxVolumeExtent512 | MaxVolumeExtent256 |
| MaxTextureRepeat 8.192 | MaxTextureRepeat 2.048 |
| MaxTextureAspectRatio 0 | MaxTextureAspectRatio 2.048 |
| MaxAnisotropy 8 | MaxAnisotropy 16 |
| MaxVertexW 1E+010 | MaxVertexW 1E+010 |
| GuardBandLeft -1E+008 | GuardBandLeft 0 |
| GuardBandTop-1E+008 | GuardBandTop0 |
| GuardBandRight 1E+008 | GuardBandRight 0 |
| GuardBandBottom1E+008 | GuardBandBottom0 |
| ExtentsAdjust 0 | ExtentsAdjust 0 |
| MaxTextureBlendStages 8 | MaxTextureBlendStages 8 |
| MaxSimultaneousTextures 4 | MaxSimultaneousTextures 6 |
| MaxActiveLights8 | MaxActiveLights8 |
| MaxUserClipPlanes 0 | MaxUserClipPlanes 6 |
| MaxVertexBlendMatrices4 | MaxVertexBlendMatrices4 |
| MaxVertexBlendMatrixIndex0 | MaxVertexBlendMatrixIndex57 |
| MaxPointSize64 | MaxPointSize256 |
| MaxPrimitiveCount 1.048.575 | MaxPrimitiveCount 65.535 |
| MaxVertexIndex 1.048.575 | MaxVertexIndex 16.777.215 |
| MaxStreams 16 | MaxStreams 8 |
| MaxStreamStride256 | MaxStreamStride1.024 |
| VertexShaderVersion1.1 | VertexShaderVersion1.1 |
| MaxVertexShaderConst 96 | MaxVertexShaderConst 192 |
| PixelShaderVersion1.1 | PixelShaderVersion1.4 |
| MaxPixelShaderValue1 | MaxPixelShaderValue8 |
| Caps | Caps |
| D3DCAPS_READ_SCANLINE Yes | D3DCAPS_READ_SCANLINE Yes |
| Caps2 | Caps2 |
| D3DCAPS2_CANRENDERWINDOWED Yes | D3DCAPS2_CANRENDERWINDOWED Yes |
| D3DCAPS2_FULLSCREENGAMMA Yes | D3DCAPS2_FULLSCREENGAMMA Yes |
| Caps3 | Caps3 |
| PresentationIntervals | PresentationIntervals |
| D3DPRESENT_INTERVAL_ONE Yes | D3DPRESENT_INTERVAL_ONE Yes |
| D3DPRESENT_INTERVAL_TWO Yes | D3DPRESENT_INTERVAL_IMMEDIATE Yes |
| D3DPRESENT_INTERVAL_THREEYes | CursorCaps |
| D3DPRESENT_INTERVAL_FOUR Yes | DevCaps |
| D3DPRESENT_INTERVAL_IMMEDIATE Yes | D3DDEVCAPS_EXECUTESYSTEMMEMORY Yes |
| CursorCaps | D3DDEVCAPS_EXECUTEVIDEOMEMORY Yes |
| D3DCURSORCAPS_COLORYes | D3DDEVCAPS_TLVERTEXSYSTEMMEMORYYes |
| DevCaps | D3DDEVCAPS_TLVERTEXVIDEOMEMORY Yes |
| D3DDEVCAPS_EXECUTESYSTEMMEMORY Yes | D3DDEVCAPS_TEXTUREVIDEOMEMORY Yes |
| D3DDEVCAPS_EXECUTEVIDEOMEMORY Yes | D3DDEVCAPS_DRAWPRIMTLVERTEX Yes |
| D3DDEVCAPS_TLVERTEXSYSTEMMEMORYYes | D3DDEVCAPS_CANRENDERAFTERFLIP Yes |
| D3DDEVCAPS_TLVERTEXVIDEOMEMORY Yes | D3DDEVCAPS_TEXTURENONLOCALVIDMEM Yes |
| D3DDEVCAPS_TEXTUREVIDEOMEMORY Yes | D3DDEVCAPS_DRAWPRIMITIVES2 Yes |
| D3DDEVCAPS_DRAWPRIMTLVERTEX Yes | D3DDEVCAPS_DRAWPRIMITIVES2EXYes |
| D3DDEVCAPS_CANRENDERAFTERFLIP Yes | D3DDEVCAPS_HWTRANSFORMANDLIGHT Yes |
| D3DDEVCAPS_TEXTURENONLOCALVIDMEM Yes | D3DDEVCAPS_CANBLTSYSTONONLOCAL Yes |
| D3DDEVCAPS_DRAWPRIMITIVES2 Yes | D3DDEVCAPS_HWRASTERIZATION Yes |
| D3DDEVCAPS_DRAWPRIMITIVES2EXYes | D3DDEVCAPS_PUREDEVICE Yes |
| D3DDEVCAPS_HWTRANSFORMANDLIGHT Yes | D3DDEVCAPS_NPATCHESYes |
| D3DDEVCAPS_CANBLTSYSTONONLOCAL Yes | PrimitiveMiscCaps |
| D3DDEVCAPS_HWRASTERIZATION Yes | D3DPMISCCAPS_MASKZ Yes |
| D3DDEVCAPS_PUREDEVICE Yes | D3DPMISCCAPS_LINEPATTERNREP Yes |
| PrimitiveMiscCaps | D3DPMISCCAPS_CULLNONE Yes |
| D3DPMISCCAPS_MASKZ Yes | D3DPMISCCAPS_CULLCWYes |
| D3DPMISCCAPS_CULLNONE Yes | D3DPMISCCAPS_CULLCCW Yes |
| D3DPMISCCAPS_CULLCWYes | D3DPMISCCAPS_COLORWRITEENABLE Yes |
| D3DPMISCCAPS_CULLCCW Yes | D3DPMISCCAPS_CLIPPLANESCALEDPOINTSYes |
| D3DPMISCCAPS_COLORWRITEENABLE Yes | D3DPMISCCAPS_TSSARGTEMP Yes |
| D3DPMISCCAPS_TSSARGTEMP Yes | D3DPMISCCAPS_BLENDOP Yes |
| D3DPMISCCAPS_BLENDOP Yes | RasterCaps |
| RasterCaps | D3DPRASTERCAPS_DITHER Yes |
| D3DPRASTERCAPS_DITHER Yes | D3DPRASTERCAPS_PAT Yes |
| D3DPRASTERCAPS_FOGVERTEX Yes | D3DPRASTERCAPS_ZTEST Yes |
| D3DPRASTERCAPS_FOGTABLE Yes | D3DPRASTERCAPS_FOGVERTEX Yes |
| D3DPRASTERCAPS_ANTIALIASEDGES Yes | D3DPRASTERCAPS_FOGTABLE Yes |
| D3DPRASTERCAPS_MIPMAPLODBIASYes | D3DPRASTERCAPS_ANTIALIASEDGES Yes |
| D3DPRASTERCAPS_ZBIAS Yes | D3DPRASTERCAPS_MIPMAPLODBIASYes |
| D3DPRASTERCAPS_FOGRANGE Yes | D3DPRASTERCAPS_ZBIAS Yes |
| D3DPRASTERCAPS_ANISOTROPYYes | D3DPRASTERCAPS_FOGRANGE Yes |
| D3DPRASTERCAPS_WBUFFERYes | D3DPRASTERCAPS_ANISOTROPYYes |
| D3DPRASTERCAPS_WFOGYes | D3DPRASTERCAPS_WBUFFERYes |
| D3DPRASTERCAPS_ZFOGYes | D3DPRASTERCAPS_WFOGYes |
| D3DPRASTERCAPS_STRETCHBLTMULTISAMPLE Yes | D3DPRASTERCAPS_ZFOGYes |
| ZCmpCaps | D3DPRASTERCAPS_COLORPERSPECTIVEYes |
| D3DPCMPCAPS_NEVER Yes | D3DPRASTERCAPS_STRETCHBLTMULTISAMPLE Yes |
| D3DPCMPCAPS_LESSYes | ZCmpCaps |
| D3DPCMPCAPS_EQUAL Yes | D3DPCMPCAPS_NEVER Yes |
| D3DPCMPCAPS_LESSEQUAL Yes | D3DPCMPCAPS_LESSYes |
| D3DPCMPCAPS_GREATERYes | D3DPCMPCAPS_EQUAL Yes |
| D3DPCMPCAPS_NOTEQUAL Yes | D3DPCMPCAPS_LESSEQUAL Yes |
| D3DPCMPCAPS_GREATEREQUAL Yes | D3DPCMPCAPS_GREATERYes |
| D3DPCMPCAPS_ALWAYS Yes | D3DPCMPCAPS_NOTEQUAL Yes |
| SrcBlendCaps | D3DPCMPCAPS_GREATEREQUAL Yes |
| D3DPBLENDCAPS_ZERO Yes | D3DPCMPCAPS_ALWAYS Yes |
| D3DPBLENDCAPS_ONE Yes | SrcBlendCaps |
| D3DPBLENDCAPS_SRCCOLORYes | D3DPBLENDCAPS_ZERO Yes |
| D3DPBLENDCAPS_INVSRCCOLORYes | D3DPBLENDCAPS_ONE Yes |
| D3DPBLENDCAPS_SRCALPHAYes | D3DPBLENDCAPS_SRCCOLORYes |
| D3DPBLENDCAPS_INVSRCALPHAYes | D3DPBLENDCAPS_INVSRCCOLORYes |
| D3DPBLENDCAPS_DESTALPHA Yes | D3DPBLENDCAPS_SRCALPHAYes |
| D3DPBLENDCAPS_INVDESTALPHA Yes | D3DPBLENDCAPS_INVSRCALPHAYes |
| D3DPBLENDCAPS_DESTCOLOR Yes | D3DPBLENDCAPS_DESTALPHA Yes |
| D3DPBLENDCAPS_INVDESTCOLOR Yes | D3DPBLENDCAPS_INVDESTALPHA Yes |
| D3DPBLENDCAPS_SRCALPHASATYes | D3DPBLENDCAPS_DESTCOLOR Yes |
| D3DPBLENDCAPS_BOTHSRCALPHA Yes | D3DPBLENDCAPS_INVDESTCOLOR Yes |
| D3DPBLENDCAPS_BOTHINVSRCALPHA Yes | D3DPBLENDCAPS_SRCALPHASATYes |
| DestBlendCaps | D3DPBLENDCAPS_BOTHSRCALPHA Yes |
| D3DPBLENDCAPS_ZERO Yes | D3DPBLENDCAPS_BOTHINVSRCALPHA Yes |
| D3DPBLENDCAPS_ONE Yes | DestBlendCaps |
| D3DPBLENDCAPS_SRCCOLORYes | D3DPBLENDCAPS_ZERO Yes |
| D3DPBLENDCAPS_INVSRCCOLORYes | D3DPBLENDCAPS_ONE Yes |
| D3DPBLENDCAPS_SRCALPHAYes | D3DPBLENDCAPS_SRCCOLORYes |
| D3DPBLENDCAPS_INVSRCALPHAYes | D3DPBLENDCAPS_INVSRCCOLORYes |
| D3DPBLENDCAPS_DESTALPHA Yes | D3DPBLENDCAPS_SRCALPHAYes |
| D3DPBLENDCAPS_INVDESTALPHA Yes | D3DPBLENDCAPS_INVSRCALPHAYes |
| D3DPBLENDCAPS_DESTCOLOR Yes | D3DPBLENDCAPS_DESTALPHA Yes |
| D3DPBLENDCAPS_INVDESTCOLOR Yes | D3DPBLENDCAPS_INVDESTALPHA Yes |
| D3DPBLENDCAPS_SRCALPHASATYes | D3DPBLENDCAPS_DESTCOLOR Yes |
| D3DPBLENDCAPS_BOTHSRCALPHA Yes | D3DPBLENDCAPS_INVDESTCOLOR Yes |
| D3DPBLENDCAPS_BOTHINVSRCALPHA Yes | D3DPBLENDCAPS_BOTHSRCALPHA Yes |
| AlphaCmpCaps | D3DPBLENDCAPS_BOTHINVSRCALPHA Yes |
| D3DPCMPCAPS_NEVER Yes | AlphaCmpCaps |
| D3DPCMPCAPS_LESSYes | D3DPCMPCAPS_NEVER Yes |
| D3DPCMPCAPS_EQUAL Yes | D3DPCMPCAPS_LESSYes |
| D3DPCMPCAPS_LESSEQUAL Yes | D3DPCMPCAPS_EQUAL Yes |
| D3DPCMPCAPS_GREATERYes | D3DPCMPCAPS_LESSEQUAL Yes |
| D3DPCMPCAPS_NOTEQUAL Yes | D3DPCMPCAPS_GREATERYes |
| D3DPCMPCAPS_GREATEREQUAL Yes | D3DPCMPCAPS_NOTEQUAL Yes |
| D3DPCMPCAPS_ALWAYS Yes | D3DPCMPCAPS_GREATEREQUAL Yes |
| ShadeCaps | D3DPCMPCAPS_ALWAYS Yes |
| D3DPSHADECAPS_COLORGOURAUDRGB Yes | ShadeCaps |
| D3DPSHADECAPS_SPECULARGOURAUDRGB Yes | D3DPSHADECAPS_COLORGOURAUDRGB Yes |
| D3DPSHADECAPS_ALPHAGOURAUDBLENDYes | D3DPSHADECAPS_SPECULARGOURAUDRGB Yes |
| D3DPSHADECAPS_FOGGOURAUD Yes | D3DPSHADECAPS_ALPHAGOURAUDBLENDYes |
| TextureCaps | D3DPSHADECAPS_FOGGOURAUD Yes |
| D3DPTEXTURECAPS_PERSPECTIVE Yes | TextureCaps |
| D3DPTEXTURECAPS_POW2 Yes | D3DPTEXTURECAPS_PERSPECTIVE Yes |
| D3DPTEXTURECAPS_ALPHA Yes | D3DPTEXTURECAPS_POW2 Yes |
| D3DPTEXTURECAPS_ALPHAPALETTEYes | D3DPTEXTURECAPS_ALPHA Yes |
| D3DPTEXTURECAPS_NONPOW2CONDITIONALYes | D3DPTEXTURECAPS_TEXREPEATNOTSCALEDBYSIZEYes |
| D3DPTEXTURECAPS_PROJECTEDYes | D3DPTEXTURECAPS_NONPOW2CONDITIONALYes |
| D3DPTEXTURECAPS_CUBEMAP Yes | D3DPTEXTURECAPS_PROJECTEDYes |
| D3DPTEXTURECAPS_VOLUMEMAPYes | D3DPTEXTURECAPS_CUBEMAP Yes |
| D3DPTEXTURECAPS_MIPMAPYes | D3DPTEXTURECAPS_VOLUMEMAPYes |
| D3DPTEXTURECAPS_MIPVOLUMEMAPYes | D3DPTEXTURECAPS_MIPMAPYes |
| D3DPTEXTURECAPS_MIPCUBEMAP Yes | D3DPTEXTURECAPS_CUBEMAP_POW2Yes |
| D3DPTEXTURECAPS_CUBEMAP_POW2Yes | D3DPTEXTURECAPS_VOLUMEMAP_POW2 Yes |
| D3DPTEXTURECAPS_VOLUMEMAP_POW2 Yes | TextureFilterCaps |
| TextureFilterCaps | D3DPTFILTERCAPS_MINFPOINTYes |
| D3DPTFILTERCAPS_MINFPOINTYes | D3DPTFILTERCAPS_MINFLINEAR Yes |
| D3DPTFILTERCAPS_MINFLINEAR Yes | D3DPTFILTERCAPS_MINFANISOTROPICYes |
| D3DPTFILTERCAPS_MINFANISOTROPICYes | D3DPTFILTERCAPS_MIPFPOINTYes |
| D3DPTFILTERCAPS_MIPFPOINTYes | D3DPTFILTERCAPS_MIPFLINEAR Yes |
| D3DPTFILTERCAPS_MIPFLINEAR Yes | D3DPTFILTERCAPS_MAGFPOINTYes |
| D3DPTFILTERCAPS_MAGFPOINTYes | D3DPTFILTERCAPS_MAGFLINEAR Yes |
| D3DPTFILTERCAPS_MAGFLINEAR Yes | D3DPTFILTERCAPS_MAGFANISOTROPICYes |
| CubeTextureFilterCaps | CubeTextureFilterCaps |
| D3DPTFILTERCAPS_MINFPOINTYes | D3DPTFILTERCAPS_MINFPOINTYes |
| D3DPTFILTERCAPS_MINFLINEAR Yes | D3DPTFILTERCAPS_MINFLINEAR Yes |
| D3DPTFILTERCAPS_MINFANISOTROPICYes | D3DPTFILTERCAPS_MAGFPOINTYes |
| D3DPTFILTERCAPS_MIPFPOINTYes | D3DPTFILTERCAPS_MAGFLINEAR Yes |
| D3DPTFILTERCAPS_MIPFLINEAR Yes | VolumeTextureFilterCaps |
| D3DPTFILTERCAPS_MAGFPOINTYes | D3DPTFILTERCAPS_MINFPOINTYes |
| D3DPTFILTERCAPS_MAGFLINEAR Yes | D3DPTFILTERCAPS_MINFLINEAR Yes |
| VolumeTextureFilterCaps | D3DPTFILTERCAPS_MAGFPOINTYes |
| D3DPTFILTERCAPS_MINFPOINTYes | D3DPTFILTERCAPS_MAGFLINEAR Yes |
| D3DPTFILTERCAPS_MINFLINEAR Yes | TextureAddressCaps |
| D3DPTFILTERCAPS_MINFANISOTROPICYes | D3DPTADDRESSCAPS_WRAP Yes |
| D3DPTFILTERCAPS_MIPFPOINTYes | D3DPTADDRESSCAPS_MIRROR Yes |
| D3DPTFILTERCAPS_MIPFLINEAR Yes | D3DPTADDRESSCAPS_CLAMPYes |
| D3DPTFILTERCAPS_MAGFPOINTYes | D3DPTADDRESSCAPS_BORDER Yes |
| TextureAddressCaps | D3DPTADDRESSCAPS_INDEPENDENTUV Yes |
| D3DPTADDRESSCAPS_WRAP Yes | D3DPTADDRESSCAPS_MIRRORONCE Yes |
| D3DPTADDRESSCAPS_MIRROR Yes | VolumeTextureAddressCaps |
| D3DPTADDRESSCAPS_CLAMPYes | D3DPTADDRESSCAPS_WRAP Yes |
| D3DPTADDRESSCAPS_BORDER Yes | D3DPTADDRESSCAPS_MIRROR Yes |
| D3DPTADDRESSCAPS_INDEPENDENTUV Yes | D3DPTADDRESSCAPS_CLAMPYes |
| VolumeTextureAddressCaps | D3DPTADDRESSCAPS_INDEPENDENTUV Yes |
| D3DPTADDRESSCAPS_WRAP Yes | D3DPTADDRESSCAPS_MIRRORONCE Yes |
| D3DPTADDRESSCAPS_MIRROR Yes | LineCaps |
| D3DPTADDRESSCAPS_CLAMPYes | D3DLINECAPS_TEXTUREYes |
| D3DPTADDRESSCAPS_BORDER Yes | D3DLINECAPS_ZTEST Yes |
| D3DPTADDRESSCAPS_INDEPENDENTUV Yes | D3DLINECAPS_BLEND Yes |
| LineCaps | D3DLINECAPS_ALPHACMP Yes |
| D3DLINECAPS_TEXTUREYes | D3DLINECAPS_FOGYes |
| D3DLINECAPS_ZTEST Yes | StencilCaps |
| D3DLINECAPS_BLEND Yes | D3DSTENCILCAPS_KEEPYes |
| D3DLINECAPS_ALPHACMP Yes | D3DSTENCILCAPS_ZEROYes |
| D3DLINECAPS_FOGYes | D3DSTENCILCAPS_REPLACEYes |
| StencilCaps | D3DSTENCILCAPS_INCRSATYes |
| D3DSTENCILCAPS_KEEPYes | D3DSTENCILCAPS_DECRSATYes |
| D3DSTENCILCAPS_ZEROYes | D3DSTENCILCAPS_INVERT Yes |
| D3DSTENCILCAPS_REPLACEYes | D3DSTENCILCAPS_INCRYes |
| D3DSTENCILCAPS_INCRSATYes | D3DSTENCILCAPS_DECRYes |
| D3DSTENCILCAPS_DECRSATYes | FVFCaps |
| D3DSTENCILCAPS_INVERT Yes | FVFCaps & D3DFVFCAPS_TEXCOORDCOUNTMASKYes |
| D3DSTENCILCAPS_INCRYes | D3DFVFCAPS_PSIZEYes |
| D3DSTENCILCAPS_DECRYes | TextureOpCaps |
| FVFCaps | D3DTEXOPCAPS_DISABLE Yes |
| D3DFVFCAPS_DONOTSTRIPELEMENTS Yes | D3DTEXOPCAPS_SELECTARG1 Yes |
| FVFCaps & D3DFVFCAPS_TEXCOORDCOUNTMASK Yes | D3DTEXOPCAPS_SELECTARG2 Yes |
| TextureOpCaps | D3DTEXOPCAPS_MODULATE Yes |
| D3DTEXOPCAPS_DISABLE Yes | D3DTEXOPCAPS_MODULATE2X Yes |
| D3DTEXOPCAPS_SELECTARG1 Yes | D3DTEXOPCAPS_MODULATE4X Yes |
| D3DTEXOPCAPS_SELECTARG2 Yes | D3DTEXOPCAPS_ADDYes |
| D3DTEXOPCAPS_MODULATE Yes | D3DTEXOPCAPS_ADDSIGNEDYes |
| D3DTEXOPCAPS_MODULATE2X Yes | D3DTEXOPCAPS_ADDSIGNED2X Yes |
| D3DTEXOPCAPS_MODULATE4X Yes | D3DTEXOPCAPS_SUBTRACT Yes |
| D3DTEXOPCAPS_ADDYes | D3DTEXOPCAPS_ADDSMOOTHYes |
| D3DTEXOPCAPS_ADDSIGNEDYes | D3DTEXOPCAPS_BLENDDIFFUSEALPHA Yes |
| D3DTEXOPCAPS_ADDSIGNED2X Yes | D3DTEXOPCAPS_BLENDTEXTUREALPHA Yes |
| D3DTEXOPCAPS_SUBTRACT Yes | D3DTEXOPCAPS_BLENDFACTORALPHA Yes |
| D3DTEXOPCAPS_ADDSMOOTHYes | D3DTEXOPCAPS_BLENDTEXTUREALPHAPM Yes |
| D3DTEXOPCAPS_BLENDDIFFUSEALPHA Yes | D3DTEXOPCAPS_BLENDCURRENTALPHA Yes |
| D3DTEXOPCAPS_BLENDTEXTUREALPHA Yes | D3DTEXOPCAPS_PREMODULATE Yes |
| D3DTEXOPCAPS_BLENDFACTORALPHA Yes | D3DTEXOPCAPS_MODULATEALPHA_ADDCOLOR Yes |
| D3DTEXOPCAPS_BLENDTEXTUREALPHAPM Yes | D3DTEXOPCAPS_MODULATECOLOR_ADDALPHA Yes |
| D3DTEXOPCAPS_BLENDCURRENTALPHA Yes | D3DTEXOPCAPS_MODULATEINVALPHA_ADDCOLOR Yes |
| D3DTEXOPCAPS_MODULATEALPHA_ADDCOLOR Yes | D3DTEXOPCAPS_MODULATEINVCOLOR_ADDALPHA Yes |
| D3DTEXOPCAPS_MODULATECOLOR_ADDALPHA Yes | D3DTEXOPCAPS_BUMPENVMAP Yes |
| D3DTEXOPCAPS_MODULATEINVALPHA_ADDCOLOR Yes | D3DTEXOPCAPS_BUMPENVMAPLUMINANCE Yes |
| D3DTEXOPCAPS_MODULATEINVCOLOR_ADDALPHA Yes | D3DTEXOPCAPS_DOTPRODUCT3 Yes |
| D3DTEXOPCAPS_BUMPENVMAP Yes | D3DTEXOPCAPS_MULTIPLYADD Yes |
| D3DTEXOPCAPS_BUMPENVMAPLUMINANCE Yes | D3DTEXOPCAPS_LERP Yes |
| D3DTEXOPCAPS_DOTPRODUCT3 Yes | VertexProcessingCaps |
| D3DTEXOPCAPS_MULTIPLYADD Yes | D3DVTXPCAPS_DIRECTIONALLIGHTS Yes |
| D3DTEXOPCAPS_LERP Yes | D3DVTXPCAPS_LOCALVIEWER Yes |
| VertexProcessingCaps | D3DVTXPCAPS_MATERIALSOURCE7 Yes |
| D3DVTXPCAPS_DIRECTIONALLIGHTS Yes | D3DVTXPCAPS_POSITIONALLIGHTSYes |
| D3DVTXPCAPS_LOCALVIEWER Yes | D3DVTXPCAPS_TEXGEN Yes |
| D3DVTXPCAPS_MATERIALSOURCE7 Yes | D3DVTXPCAPS_TWEENING Yes |
| D3DVTXPCAPS_POSITIONALLIGHTSYes | Adapter Formats |
| D3DVTXPCAPS_TEXGEN Yes | D3DFMT_X8R8G8B8 (Fullscreen) |
| D3DVTXPCAPS_NO_VSDT_UBYTE4 Yes | Back Buffer Formats |
| Adapter Formats | D3DFMT_A8R8G8B8 |
| D3DFMT_X8R8G8B8 (Fullscreen) | MultiSample Types |
| Back Buffer Formats | D3DMULTISAMPLE_NONE |
| D3DFMT_A8R8G8B8 | Depth/Stencil Formats |
| MultiSample Types | D3DFMT_D24S8 |
| D3DMULTISAMPLE_NONE | D3DFMT_D16 |
| D3DMULTISAMPLE_2_SAMPLES | D3DFMT_D24X8 |
| D3DMULTISAMPLE_3_SAMPLES | D3DFMT_X8R8G8B8 |
| D3DMULTISAMPLE_4_SAMPLES | MultiSample Types |
| Depth/Stencil Formats | D3DMULTISAMPLE_NONE |
| D3DFMT_D24S8 | D3DMULTISAMPLE_2_SAMPLES |
| D3DFMT_D16 | D3DMULTISAMPLE_4_SAMPLES |
| D3DFMT_D24X8 | Depth/Stencil Formats |
| D3DFMT_X8R8G8B8 | D3DFMT_D24S8 |
| MultiSample Types | D3DFMT_D16 |
| D3DMULTISAMPLE_NONE | D3DFMT_D24X8 |
| D3DMULTISAMPLE_2_SAMPLES | Render Target Formats |
| D3DMULTISAMPLE_3_SAMPLES | D3DFMT_A8R8G8B8 |
| D3DMULTISAMPLE_4_SAMPLES | D3DFMT_X8R8G8B8 |
| Depth/Stencil Formats | D3DFMT_R5G6B5 |
| D3DFMT_D24S8 | D3DFMT_A1R5G5B5 |
| D3DFMT_D16 | D3DFMT_A4R4G4B4 |
| D3DFMT_D24X8 | D3DFMT_R3G3B2 |
| Render Target Formats | Texture Formats |
| D3DFMT_A8R8G8B8 | D3DFMT_A8R8G8B8 |
| D3DFMT_X8R8G8B8 | D3DFMT_X8R8G8B8 |
| D3DFMT_R5G6B5 | D3DFMT_R5G6B5 |
| D3DFMT_X1R5G5B5 | D3DFMT_X1R5G5B5 |
| Texture Formats | D3DFMT_A1R5G5B5 |
| D3DFMT_A8R8G8B8 | D3DFMT_A4R4G4B4 |
| D3DFMT_X8R8G8B8 | D3DFMT_R3G3B2 |
| D3DFMT_R5G6B5 | D3DFMT_L8 |
| D3DFMT_X1R5G5B5 | D3DFMT_A8L8 |
| D3DFMT_A1R5G5B5 | D3DFMT_V8U8 |
| D3DFMT_A4R4G4B4 | D3DFMT_L6V5U5 |
| D3DFMT_P8 | D3DFMT_X8L8V8U8 |
| D3DFMT_V8U8 | D3DFMT_Q8W8V8U8 |
| D3DFMT_L6V5U5 | D3DFMT_V16U16 |
| D3DFMT_X8L8V8U8 | D3DFMT_W11V11U10 |
| D3DFMT_Q8W8V8U8 | D3DFMT_DXT1 |
| D3DFMT_DXT1 | D3DFMT_DXT2 |
| D3DFMT_DXT2 | D3DFMT_DXT3 |
| D3DFMT_DXT3 | D3DFMT_DXT4 |
| D3DFMT_DXT4 | D3DFMT_DXT5 |
| D3DFMT_DXT5 | Cube Texture Formats |
| D3DFMT_D24S8 | D3DFMT_A8R8G8B8 |
| D3DFMT_D16 | D3DFMT_X8R8G8B8 |
| D3DFMT_D24X8 | D3DFMT_R5G6B5 |
| Cube Texture Formats | D3DFMT_X1R5G5B5 |
| D3DFMT_A8R8G8B8 | D3DFMT_A1R5G5B5 |
| D3DFMT_X8R8G8B8 | D3DFMT_A4R4G4B4 |
| D3DFMT_R5G6B5 | D3DFMT_R3G3B2 |
| D3DFMT_X1R5G5B5 | D3DFMT_L8 |
| D3DFMT_A1R5G5B5 | D3DFMT_A8L8 |
| D3DFMT_A4R4G4B4 | D3DFMT_Q8W8V8U8 |
| D3DFMT_P8 | D3DFMT_W11V11U10 |
| D3DFMT_Q8W8V8U8 | D3DFMT_DXT1 |
| D3DFMT_DXT1 | D3DFMT_DXT2 |
| D3DFMT_DXT2 | D3DFMT_DXT3 |
| D3DFMT_DXT3 | D3DFMT_DXT4 |
| D3DFMT_DXT4 | D3DFMT_DXT5 |
| D3DFMT_DXT5 | Volume Texture Formats |
| D3DFMT_D24S8 | D3DFMT_A8R8G8B8 |
| D3DFMT_D16 | D3DFMT_X8R8G8B8 |
| D3DFMT_D24X8 | D3DFMT_R5G6B5 |
| Volume Texture Formats | D3DFMT_X1R5G5B5 |
| D3DFMT_A8R8G8B8 | D3DFMT_A1R5G5B5 |
| D3DFMT_X8R8G8B8 | D3DFMT_A4R4G4B4 |
| D3DFMT_R5G6B5 | D3DFMT_R3G3B2 |
| D3DFMT_X1R5G5B5 | D3DFMT_L8 |
| D3DFMT_A1R5G5B5 | D3DFMT_A8L8 |
| D3DFMT_A4R4G4B4 | D3DFMT_Q8W8V8U8 |
| D3DFMT_P8 | D3DFMT_W11V11U10 |
| D3DFMT_X8R8G8B8 (Windowed) | D3DFMT_DXT1 |
| Back Buffer Formats | D3DFMT_DXT2 |
| D3DFMT_A8R8G8B8 | D3DFMT_DXT3 |
| MultiSample Types | D3DFMT_DXT4 |
| D3DMULTISAMPLE_NONE | D3DFMT_DXT5 |
| D3DMULTISAMPLE_2_SAMPLES | D3DFMT_X8R8G8B8 (Windowed) |
| D3DMULTISAMPLE_3_SAMPLES | Back Buffer Formats |
| D3DMULTISAMPLE_4_SAMPLES | D3DFMT_A8R8G8B8 |
| Depth/Stencil Formats | MultiSample Types |
| D3DFMT_D24S8 | D3DMULTISAMPLE_NONE |
| D3DFMT_D16 | Depth/Stencil Formats |
| D3DFMT_D24X8 | D3DFMT_D24S8 |
| D3DFMT_X8R8G8B8 | D3DFMT_D16 |
| MultiSample Types | D3DFMT_D24X8 |
| D3DMULTISAMPLE_NONE | D3DFMT_X8R8G8B8 |
| D3DMULTISAMPLE_2_SAMPLES | MultiSample Types |
| D3DMULTISAMPLE_3_SAMPLES | D3DMULTISAMPLE_NONE |
| D3DMULTISAMPLE_4_SAMPLES | D3DMULTISAMPLE_2_SAMPLES |
| Depth/Stencil Formats | D3DMULTISAMPLE_4_SAMPLES |
| D3DFMT_D24S8 | Depth/Stencil Formats |
| D3DFMT_D16 | D3DFMT_D24S8 |
| D3DFMT_D24X8 | D3DFMT_D16 |
| Render Target Formats | D3DFMT_D24X8 |
| D3DFMT_A8R8G8B8 | Render Target Formats |
| D3DFMT_X8R8G8B8 | D3DFMT_A8R8G8B8 |
| D3DFMT_R5G6B5 | D3DFMT_X8R8G8B8 |
| D3DFMT_X1R5G5B5 | D3DFMT_R5G6B5 |
| Texture Formats | D3DFMT_A1R5G5B5 |
| D3DFMT_A8R8G8B8 | D3DFMT_A4R4G4B4 |
| D3DFMT_X8R8G8B8 | D3DFMT_R3G3B2 |
| D3DFMT_R5G6B5 | Texture Formats |
| D3DFMT_X1R5G5B5 | D3DFMT_A8R8G8B8 |
| D3DFMT_A1R5G5B5 | D3DFMT_X8R8G8B8 |
| D3DFMT_A4R4G4B4 | D3DFMT_R5G6B5 |
| D3DFMT_P8 | D3DFMT_X1R5G5B5 |
| D3DFMT_V8U8 | D3DFMT_A1R5G5B5 |
| D3DFMT_L6V5U5 | D3DFMT_A4R4G4B4 |
| D3DFMT_X8L8V8U8 | D3DFMT_R3G3B2 |
| D3DFMT_Q8W8V8U8 | D3DFMT_L8 |
| D3DFMT_DXT1 | D3DFMT_A8L8 |
| D3DFMT_DXT2 | D3DFMT_V8U8 |
| D3DFMT_DXT3 | D3DFMT_L6V5U5 |
| D3DFMT_DXT4 | D3DFMT_X8L8V8U8 |
| D3DFMT_DXT5 | D3DFMT_Q8W8V8U8 |
| D3DFMT_D24S8 | D3DFMT_V16U16 |
| D3DFMT_D16 | D3DFMT_W11V11U10 |
| D3DFMT_D24X8 | D3DFMT_DXT1 |
| Cube Texture Formats | D3DFMT_DXT2 |
| D3DFMT_A8R8G8B8 | D3DFMT_DXT3 |
| D3DFMT_X8R8G8B8 | D3DFMT_DXT4 |
| D3DFMT_R5G6B5 | D3DFMT_DXT5 |
| D3DFMT_X1R5G5B5 | Cube Texture Formats |
| D3DFMT_A1R5G5B5 | D3DFMT_A8R8G8B8 |
| D3DFMT_A4R4G4B4 | D3DFMT_X8R8G8B8 |
| D3DFMT_P8 | D3DFMT_R5G6B5 |
| D3DFMT_Q8W8V8U8 | D3DFMT_X1R5G5B5 |
| D3DFMT_DXT1 | D3DFMT_A1R5G5B5 |
| D3DFMT_DXT2 | D3DFMT_A4R4G4B4 |
| D3DFMT_DXT3 | D3DFMT_R3G3B2 |
| D3DFMT_DXT4 | D3DFMT_L8 |
| D3DFMT_DXT5 | D3DFMT_A8L8 |
| D3DFMT_D24S8 | D3DFMT_Q8W8V8U8 |
| D3DFMT_D16 | D3DFMT_W11V11U10 |
| D3DFMT_D24X8 | D3DFMT_DXT1 |
| Volume Texture Formats | D3DFMT_DXT2 |
| D3DFMT_A8R8G8B8 | D3DFMT_DXT3 |
| D3DFMT_X8R8G8B8 | D3DFMT_DXT4 |
| D3DFMT_R5G6B5 | D3DFMT_DXT5 |
| D3DFMT_X1R5G5B5 | Volume Texture Formats |
| D3DFMT_A1R5G5B5 | D3DFMT_A8R8G8B8 |
| D3DFMT_A4R4G4B4 | D3DFMT_X8R8G8B8 |
| D3DFMT_P8 | D3DFMT_R5G6B5 |
| D3DFMT_R5G6B5 (Fullscreen) | D3DFMT_X1R5G5B5 |
| Back Buffer Formats | D3DFMT_A1R5G5B5 |
| D3DFMT_R5G6B5 | D3DFMT_A4R4G4B4 |
| MultiSample Types | D3DFMT_R3G3B2 |
| D3DMULTISAMPLE_NONE | D3DFMT_L8 |
| D3DMULTISAMPLE_2_SAMPLES | D3DFMT_A8L8 |
| D3DMULTISAMPLE_3_SAMPLES | D3DFMT_Q8W8V8U8 |
| D3DMULTISAMPLE_4_SAMPLES | D3DFMT_W11V11U10 |
| Depth/Stencil Formats | D3DFMT_DXT1 |
| D3DFMT_D24S8 | D3DFMT_DXT2 |
| D3DFMT_D16 | D3DFMT_DXT3 |
| D3DFMT_D24X8 | D3DFMT_DXT4 |
| Render Target Formats | D3DFMT_DXT5 |
| D3DFMT_A8R8G8B8 | D3DFMT_R5G6B5 (Fullscreen) |
| D3DFMT_X8R8G8B8 | Back Buffer Formats |
| D3DFMT_R5G6B5 | D3DFMT_R5G6B5 |
| D3DFMT_X1R5G5B5 | MultiSample Types |
| Texture Formats | D3DMULTISAMPLE_NONE |
| D3DFMT_A8R8G8B8 | D3DMULTISAMPLE_2_SAMPLES |
| D3DFMT_X8R8G8B8 | D3DMULTISAMPLE_4_SAMPLES |
| D3DFMT_R5G6B5 | Depth/Stencil Formats |
| D3DFMT_X1R5G5B5 | D3DFMT_D24S8 |
| D3DFMT_A1R5G5B5 | D3DFMT_D16 |
| D3DFMT_A4R4G4B4 | D3DFMT_D24X8 |
| D3DFMT_P8 | Render Target Formats |
| D3DFMT_V8U8 | D3DFMT_A8R8G8B8 |
| D3DFMT_L6V5U5 | D3DFMT_X8R8G8B8 |
| D3DFMT_X8L8V8U8 | D3DFMT_R5G6B5 |
| D3DFMT_Q8W8V8U8 | D3DFMT_A1R5G5B5 |
| D3DFMT_DXT1 | D3DFMT_A4R4G4B4 |
| D3DFMT_DXT2 | D3DFMT_R3G3B2 |
| D3DFMT_DXT3 | Texture Formats |
| D3DFMT_DXT4 | D3DFMT_A8R8G8B8 |
| D3DFMT_DXT5 | D3DFMT_X8R8G8B8 |
| D3DFMT_D24S8 | D3DFMT_R5G6B5 |
| D3DFMT_D16 | D3DFMT_X1R5G5B5 |
| D3DFMT_D24X8 | D3DFMT_A1R5G5B5 |
| Cube Texture Formats | D3DFMT_A4R4G4B4 |
| D3DFMT_A8R8G8B8 | D3DFMT_R3G3B2 |
| D3DFMT_X8R8G8B8 | D3DFMT_L8 |
| D3DFMT_R5G6B5 | D3DFMT_A8L8 |
| D3DFMT_X1R5G5B5 | D3DFMT_V8U8 |
| D3DFMT_A1R5G5B5 | D3DFMT_L6V5U5 |
| D3DFMT_A4R4G4B4 | D3DFMT_X8L8V8U8 |
| D3DFMT_P8 | D3DFMT_Q8W8V8U8 |
| D3DFMT_Q8W8V8U8 | D3DFMT_V16U16 |
| D3DFMT_DXT1 | D3DFMT_W11V11U10 |
| D3DFMT_DXT2 | D3DFMT_DXT1 |
| D3DFMT_DXT3 | D3DFMT_DXT2 |
| D3DFMT_DXT4 | D3DFMT_DXT3 |
| D3DFMT_DXT5 | D3DFMT_DXT4 |
| D3DFMT_D24S8 | D3DFMT_DXT5 |
| D3DFMT_D16 | Cube Texture Formats |
| D3DFMT_D24X8 | D3DFMT_A8R8G8B8 |
| Volume Texture Formats | D3DFMT_X8R8G8B8 |
| D3DFMT_A8R8G8B8 | D3DFMT_R5G6B5 |
| D3DFMT_X8R8G8B8 | D3DFMT_X1R5G5B5 |
| D3DFMT_R5G6B5 | D3DFMT_A1R5G5B5 |
| D3DFMT_X1R5G5B5 | D3DFMT_A4R4G4B4 |
| D3DFMT_A1R5G5B5 | D3DFMT_R3G3B2 |
| D3DFMT_A4R4G4B4 | D3DFMT_L8 |
| D3DFMT_P8 | D3DFMT_A8L8 |
| D3DFMT_R5G6B5 (Windowed) | D3DFMT_Q8W8V8U8 |
| Back Buffer Formats | D3DFMT_W11V11U10 |
| D3DFMT_R5G6B5 | D3DFMT_DXT1 |
| MultiSample Types | D3DFMT_DXT2 |
| D3DMULTISAMPLE_NONE | D3DFMT_DXT3 |
| D3DMULTISAMPLE_2_SAMPLES | D3DFMT_DXT4 |
| D3DMULTISAMPLE_3_SAMPLES | D3DFMT_DXT5 |
| D3DMULTISAMPLE_4_SAMPLES | Volume Texture Formats |
| Depth/Stencil Formats | D3DFMT_A8R8G8B8 |
| D3DFMT_D24S8 | D3DFMT_X8R8G8B8 |
| D3DFMT_D16 | D3DFMT_R5G6B5 |
| D3DFMT_D24X8 | D3DFMT_X1R5G5B5 |
| Render Target Formats | D3DFMT_A1R5G5B5 |
| D3DFMT_A8R8G8B8 | D3DFMT_A4R4G4B4 |
| D3DFMT_X8R8G8B8 | D3DFMT_R3G3B2 |
| D3DFMT_R5G6B5 | D3DFMT_L8 |
| D3DFMT_X1R5G5B5 | D3DFMT_A8L8 |
| Texture Formats | D3DFMT_Q8W8V8U8 |
| D3DFMT_A8R8G8B8 | D3DFMT_W11V11U10 |
| D3DFMT_X8R8G8B8 | D3DFMT_DXT1 |
| D3DFMT_R5G6B5 | D3DFMT_DXT2 |
| D3DFMT_X1R5G5B5 | D3DFMT_DXT3 |
| D3DFMT_A1R5G5B5 | D3DFMT_DXT4 |
| D3DFMT_A4R4G4B4 | D3DFMT_DXT5 |
| D3DFMT_P8 | D3DFMT_R5G6B5 (Windowed) |
| D3DFMT_V8U8 | Back Buffer Formats |
| D3DFMT_L6V5U5 | D3DFMT_R5G6B5 |
| D3DFMT_X8L8V8U8 | MultiSample Types |
| D3DFMT_Q8W8V8U8 | D3DMULTISAMPLE_NONE |
| D3DFMT_DXT1 | D3DMULTISAMPLE_2_SAMPLES |
| D3DFMT_DXT2 | D3DMULTISAMPLE_4_SAMPLES |
| D3DFMT_DXT3 | Depth/Stencil Formats |
| D3DFMT_DXT4 | D3DFMT_D24S8 |
| D3DFMT_DXT5 | D3DFMT_D16 |
| D3DFMT_D24S8 | D3DFMT_D24X8 |
| D3DFMT_D16 | Render Target Formats |
| D3DFMT_D24X8 | D3DFMT_A8R8G8B8 |
| Cube Texture Formats | D3DFMT_X8R8G8B8 |
| D3DFMT_A8R8G8B8 | D3DFMT_R5G6B5 |
| D3DFMT_X8R8G8B8 | D3DFMT_A1R5G5B5 |
| D3DFMT_R5G6B5 | D3DFMT_A4R4G4B4 |
| D3DFMT_X1R5G5B5 | D3DFMT_R3G3B2 |
| D3DFMT_A1R5G5B5 | Texture Formats |
| D3DFMT_A4R4G4B4 | D3DFMT_A8R8G8B8 |
| D3DFMT_P8 | D3DFMT_X8R8G8B8 |
| D3DFMT_Q8W8V8U8 | D3DFMT_R5G6B5 |
| D3DFMT_DXT1 | D3DFMT_X1R5G5B5 |
| D3DFMT_DXT2 | D3DFMT_A1R5G5B5 |
| D3DFMT_DXT3 | D3DFMT_A4R4G4B4 |
| D3DFMT_DXT4 | D3DFMT_R3G3B2 |
| D3DFMT_DXT5 | D3DFMT_L8 |
| D3DFMT_D24S8 | D3DFMT_A8L8 |
| D3DFMT_D16 | D3DFMT_V8U8 |
| D3DFMT_D24X8 | D3DFMT_L6V5U5 |
| Volume Texture Formats | D3DFMT_X8L8V8U8 |
| D3DFMT_A8R8G8B8 | D3DFMT_Q8W8V8U8 |
| D3DFMT_X8R8G8B8 | D3DFMT_V16U16 |
| D3DFMT_R5G6B5 | D3DFMT_W11V11U10 |
| D3DFMT_X1R5G5B5 | D3DFMT_DXT1 |
| D3DFMT_A1R5G5B5 | D3DFMT_DXT2 |
| D3DFMT_A4R4G4B4 | D3DFMT_DXT3 |
| D3DFMT_P8 | D3DFMT_DXT4 |
| D3DFMT_DXT5 | |
| Cube Texture Formats | |
| D3DFMT_A8R8G8B8 | |
| D3DFMT_X8R8G8B8 | |
| D3DFMT_R5G6B5 | |
| D3DFMT_X1R5G5B5 | |
| D3DFMT_A1R5G5B5 | |
| D3DFMT_A4R4G4B4 | |
| D3DFMT_R3G3B2 | |
| D3DFMT_L8 | |
| D3DFMT_A8L8 | |
| D3DFMT_Q8W8V8U8 | |
| D3DFMT_W11V11U10 | |
| D3DFMT_DXT1 | |
| D3DFMT_DXT2 | |
| D3DFMT_DXT3 | |
| D3DFMT_DXT4 | |
| D3DFMT_DXT5 | |
| Volume Texture Formats | |
| D3DFMT_A8R8G8B8 | |
| D3DFMT_X8R8G8B8 | |
| D3DFMT_R5G6B5 | |
| D3DFMT_X1R5G5B5 | |
| D3DFMT_A1R5G5B5 | |
| D3DFMT_A4R4G4B4 | |
| D3DFMT_R3G3B2 | |
| D3DFMT_L8 | |
| D3DFMT_A8L8 | |
| D3DFMT_Q8W8V8U8 | |
| D3DFMT_W11V11U10 | |
| D3DFMT_DXT1 | |
| D3DFMT_DXT2 | |
| D3DFMT_DXT3 | |
| D3DFMT_DXT4 | |
| D3DFMT_DXT5 |
So, nach dieser ermüdenten Tabelle (die Länge soll keine Aussage sein!) fasse ich die wesentlichen Vor- und Nachteile nochmal kurz zusammen:
Vorteile Radeon 8500
- höheres anisotrophisches Filter (16x) - (GeForce 3 nur 8x)
- 2 getrennte Pipelines - Vertex Shader & fest T&L Einheit (GeForce3 emuliert feste T&L mit einem Vertex Shader Programm)
- frei definierbare Clipping-Flächen - (feste Clipping-Flächen bei GeForce 3)
- 6 Texturen gleichzeitig - (GeForce 3 nur 4)
- Pixel Shader Version 1.4 - (bis heute nur Version 1.1, nicht 1.3 wie behauptet)
- ermöglicht N-Patches (TruForm) - (Wo sind die RT-Patches der GeForce 3 geblieben?)
- 192 Konstanten beim Vertex Shader - (GeForce 3 nur 96)
Vorteile GeForce 3
- größere Texturen 4096x4096 - (Radeon 8500 nur 2048x2048)
- Hardware Shadow Mapping (in DirectX dank des D3DFMT_D24X8 Textureformates möglich)
